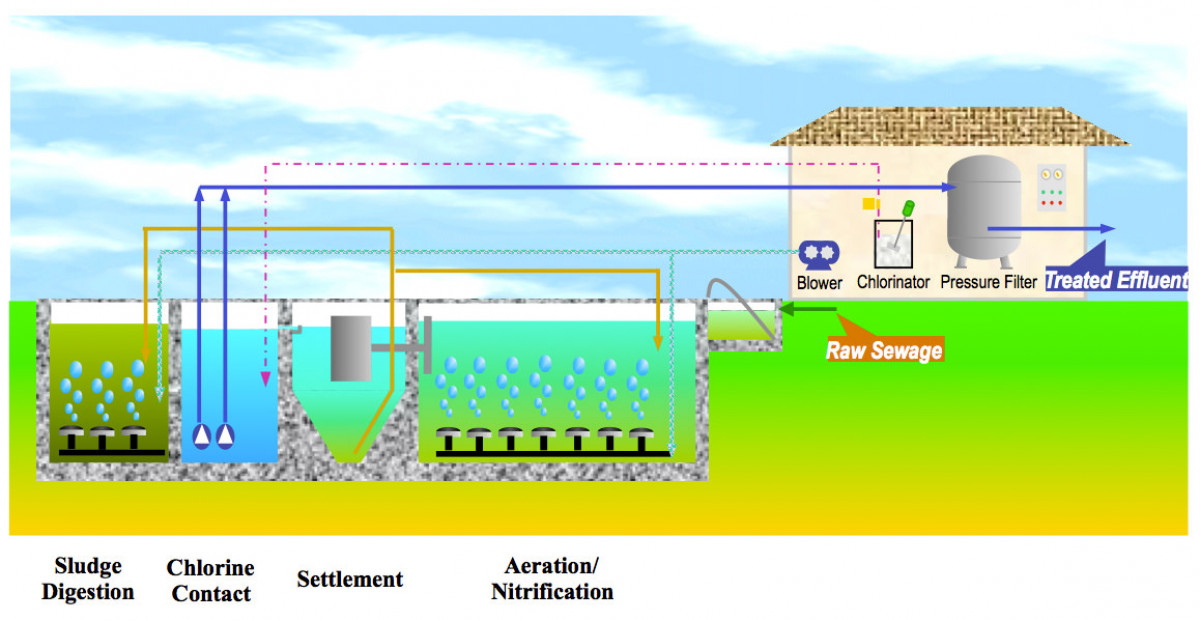

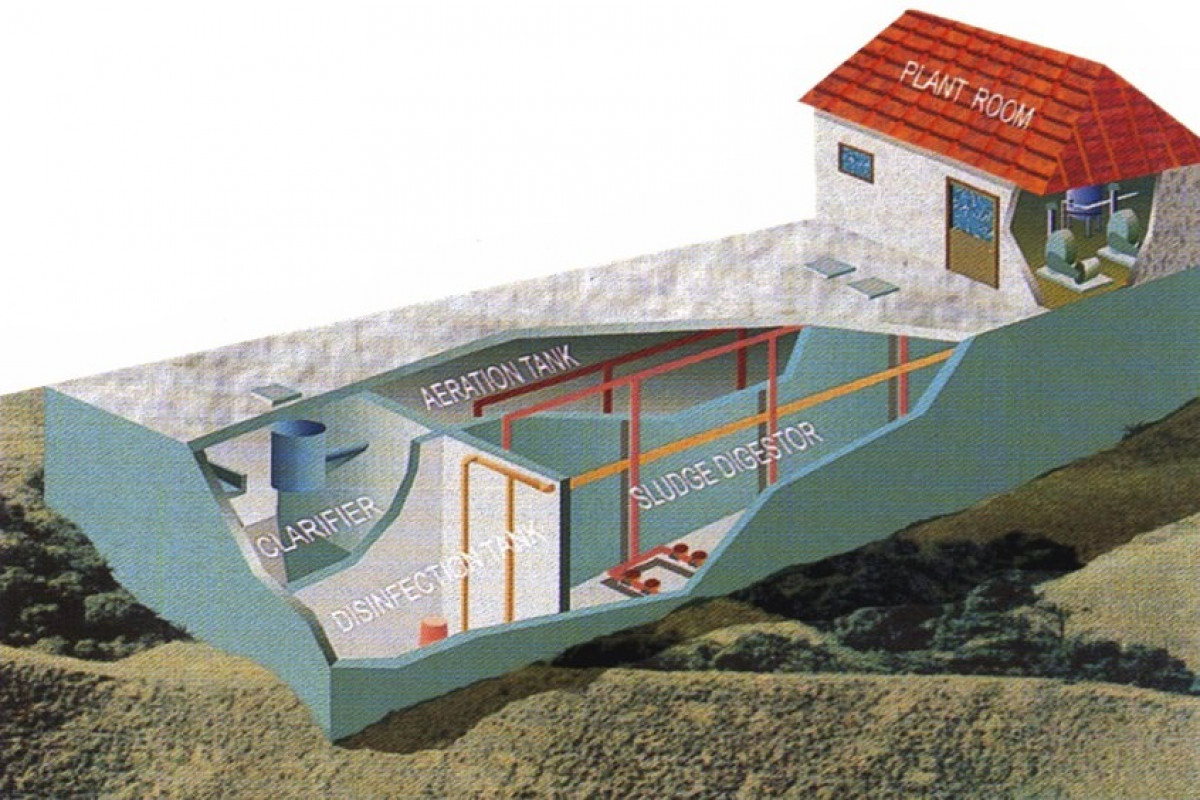

AL-PAK® Wastewater Treatment Plant

al-pak-01

The AL-PAK® wastewater treatment plant is specially engineered and developed for the important environmental needs of:

  • Townships

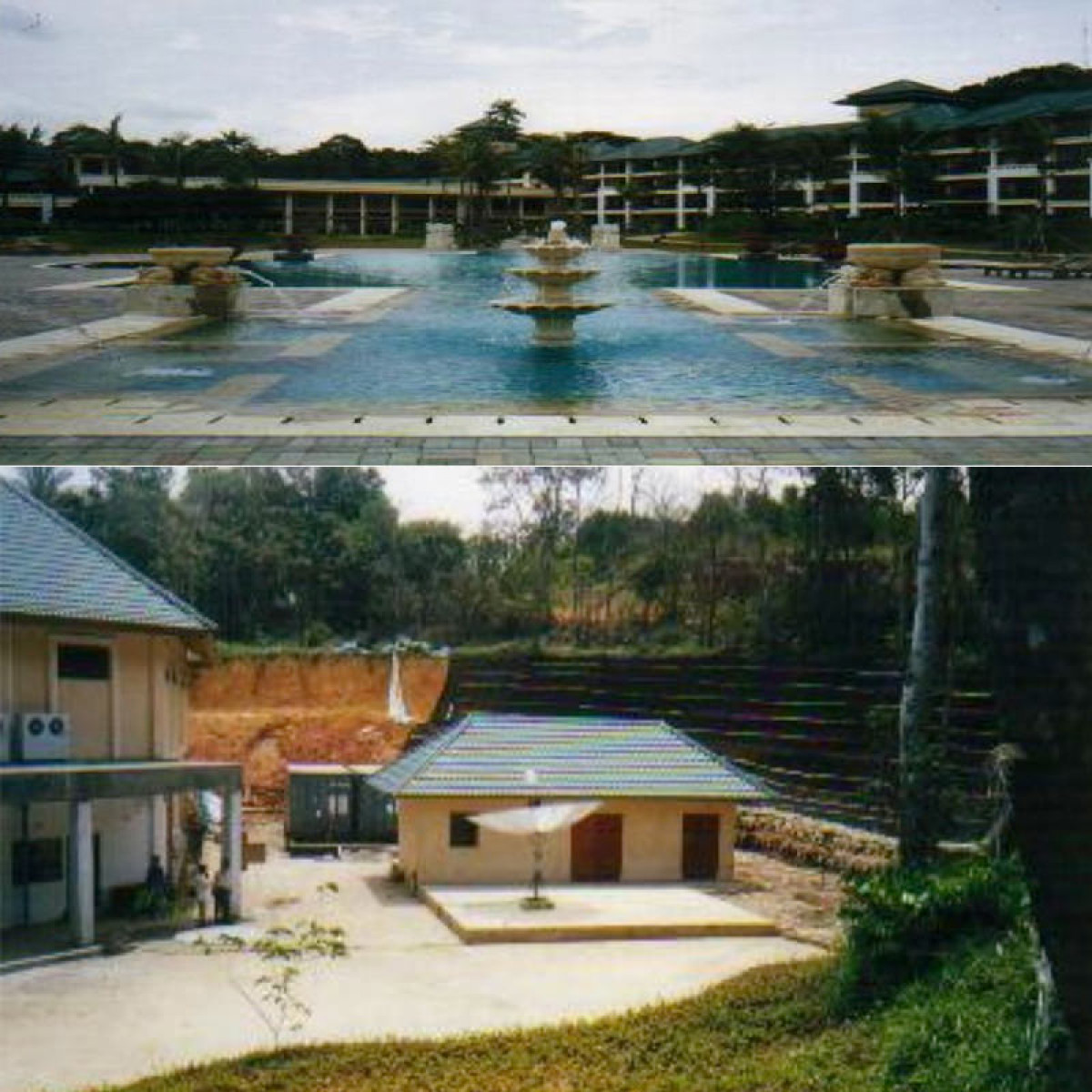

  • Hotels
  • Holiday Resorts
  • Recreation/Golf Clubs
  • Factories
  • Small Industrial Parks

AL-PAK® is available for capacity up to up to 3,000 m3/day per unit. Altech Environment will custom-engineer off-standard plant sizes and specifications to each individual client’s requirements.

AL-PAK® produces superior effluent quality which meets or surpass most government and state environmental regulations. AL-PAK® is available in standard and AL-PAK® (ceceas) (continuous extended cycles extended aeration system) with nutrient removal capability.

al-pak-07

ADVANTAGES OF AL-PAK® AND AL-PAK® (CECEAS)

  • Compact modular design
  • Low capital investment
  • Simple operation & maintenance
  • Low operation & maintenance costs
  • Simple installation/relocation
  • Minimal sludge produced
  • Excellent effluent quality
al-pak

EFFLUENT QUALITY - AL-PAK®

(mg/l)

Influent

Effluent

% Removal

Effluent (With Tertiary Treatment)

% Removal (With Tertiary Treatment)

BOD5

250

<20

92

<10

96

SS

300

<30

90

<15

95

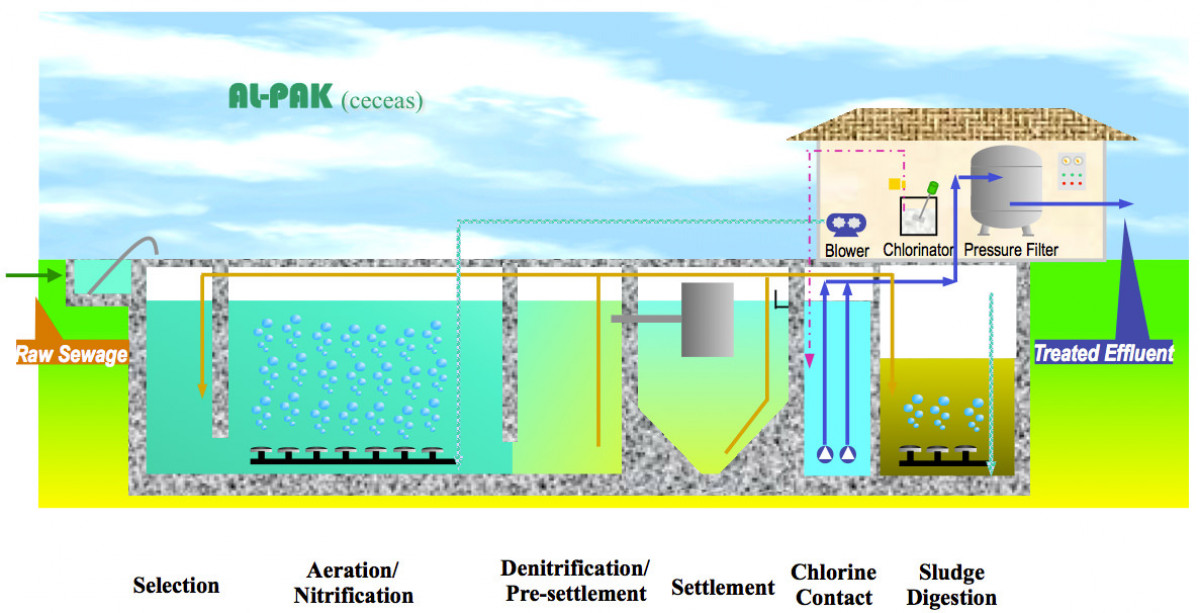

AL-PAK® is available in AL-PAK® (ceceas) version for enhanced BOD removal and nutrient removal. The advanced technology encompasses a continuous combination of aerobic/anoxic and anaerobic cycles to effectively remove BOD, N and P by totally biological means.

AL-PAK® (ceceas) is a continuous process, unlike current advanced technologies e.g. SBR which are batch processes. AL-PAK® (ceceas) does not use maintenance-intensive equipment like decanters and expensive process control systems. Its simplicity means that existing activated sludge plants can be easily upgraded to an AL-PAK® (ceceas) without heavy investment costs.

al-pak-ceceas

EFFLUENT QUALITY - AL-PAK® (ceceas)

(mg/l)

Influent

Effluent

% Removal

BOD5

250

<10

96

SS

300

<15

95

NH3N

15

<1

93

NO3/N

10

<5

50

T-P

7

<2

71

AL-PAK® and AL-PAK® (ceceas) are best suited for treating the wastewater from:

  • Domestic wastewater
  • Dairy
  • Food processing
  • Tannery
  • Pharmaceuticals
  • Chemical
  • Refineries
  • Pulp & Paper
  • Abattoirs
  • Textile
  • Beverage
  • Leachate
